Full Product Description
Model: PH-24T
Frame Tube Sizes (In.): 4 x 4
Throat (In.): 24
Head Opening (In.): 2-1/2
Maximum Pressure (PSI): 90
Air Consumption (CFM): 8.8
3-Speed Regulator (Hits Per Min.): 4,400 - 4,800 / 3,200 -
3,500 / 1,800 - 2,000

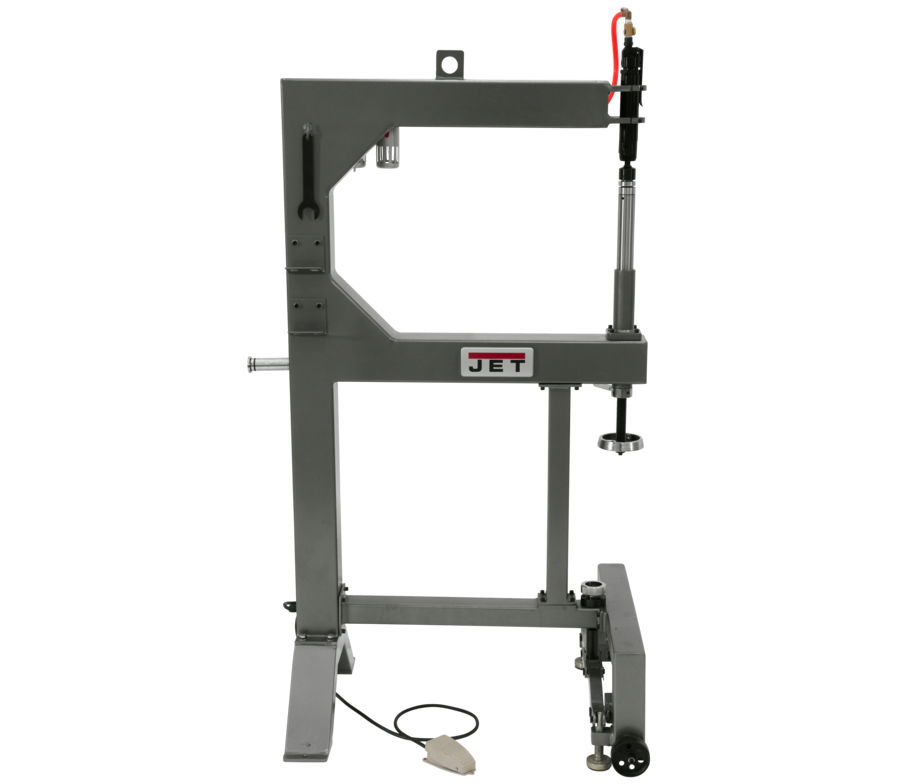

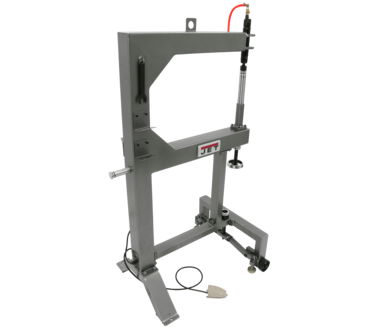

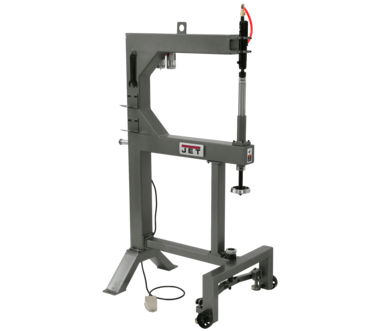

JET's 24" Planishing Hammer has a quick change set up on the
upper dies and a deep throat that works to the middle of
most panels. The head with 3-speed regulator is capable of
4,400 - 4,800 / 3,200 - 3,500 / 1,800 - 2,000 blows-per
minute (BPM). Easy to-reach, adjustable flow control valve
allows the user to deliver the proper BPM needed for any
job. Operates on standard shop air.
FEATURES:
* Smooths beads and forms mild steel sheet metal up to 16
Gauge
* Smooths beads and forms aluminum and copper up to 1/8
in. thick
* Machine supplied with a pair of upper and anvil dies
* 3-Position airflow regulates speeds of pneumatic hammer
* Machine controlled with 110V AC foot control
* 2-Die Set Brackets
* Quick change of upper dies

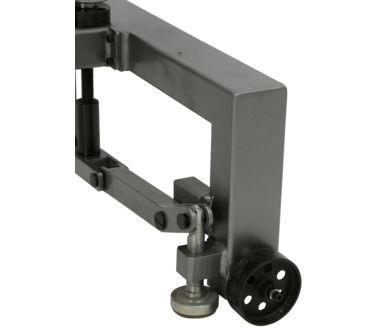

* Retractable handle makes machine easy to move around the
shop

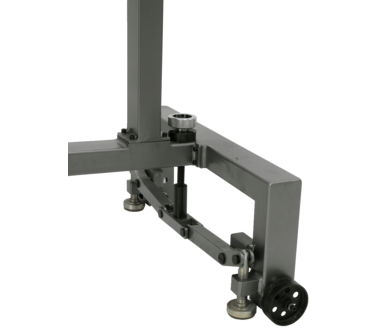

* Wider base support to prevent movement of machine while
in use
2-YEAR FACTORY WARRANTY INCLUDED!!
