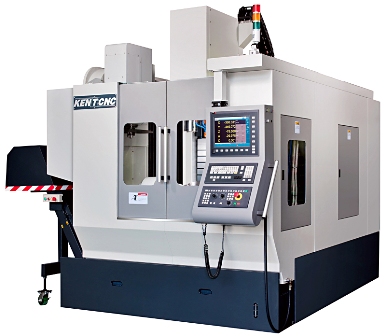

28"X, 22"Y, 19"Z, KENT 5-AXIS VERT MACH CENTER, MODEL#KMC-400-5A
Specific Info On This Equipment
Reference Number: 7975
Condition: New
"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it." Henry Ford
Full Product Description
Model: KMC-400-5A X - Travel: 29.9" (760 mm) Y - Travel: 24" (610 mm) Z - Travel: 20" (510 mm) Spindle Taper: CT-40 Spindle Speed: 12,000 RPM Rapid Traverse: 1,181 ipm (30 m/min) Spindle Motor (Max Rating): 15 HP (7.5 Kw) ATC: Arm-type 60 Tool Changer Machine Weight: 13,228 lbs(6,000 kg) Machine Dimensions: 98" x 134" x 102" (2500mm x 3400mm x 2600mm) FEATURES: * 20 hp Spindle Motor * 12,000 rpm High Performance BBT-40 Spindle w/Chiller * Travel X, Y, Z-axis: 28" x 22" x 19" * Fagor 8065i CNC Control (Click to View Control Brochure) * 400 Work Offsets * 48 Work Coordinates * 400 Registered Part Program Storage * Massive cast iron construction * 12000 RPM high rigid spindle * Direct-coupled servomotors * Full splash safety guard * Air cooling system * Spindle air blast (taper) * Spindle air blower * Auto lubrication system * Cycle end alarm light * Halogen work lamp * Leveling bolts and pads * Toolkit box * Operation & maintenance manual * Two Year Parts Warranty
