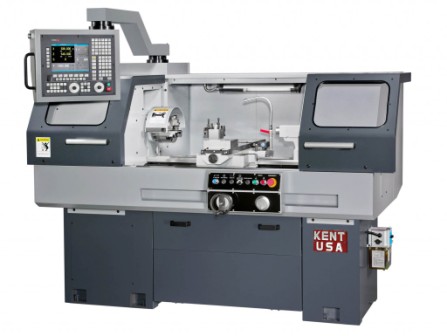

14", KENT CNC LATHE, MODEL#CSM-1440CNC **NEW**
Specific Info On This Equipment
Reference Number: 7973
Condition: New
"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it." Henry Ford
Full Product Description
Model: CSM-1440CNC Precision Lathe Swing Over Bed: 14" Swing Over Cross slide: 8-5/8" Distance Between Centers: 40" Width of Bed: 8.1" Spindle Nose: Camlock D1-4 (Opt. ASA A1-4) Spindle Bore: 1.5" Spindle Taper: MT #5 Spindle Speeds: 30-2500 RPM 3 steps Longitudinal Travel (Z-Axis): 33" Cross Slide Travel (X-Axis): 8" Z-Axis Ballscrew Diameter: 1.259", 5 mm pitch X-Axis Ballscrew Diameter: 0.98", 5 mm pitch Z-Axis Rapid Traverse Speed: 236"/min X-Axis Rapid Traverse Speed: 236"/min Tailstock Quill Diameter: 1-3/4" Tailstock Quill Travel: 4-3/4" Tailstock Taper: MT #3 Spindle Motor: 5 HP (Opt. 7 HP) AC Servo Motor (Z-Axis): 1.1 HP AC Servo Motor (X-Axis): 1.1 HP Net Weight: 2530 lbs Gross Weight: 2750 lbs Packing Dimension: 100" x 65" x 79" FEATURES: * 7.5 HP Peak Fagor Servo Spindle motor * Manual and CNC mode conversational control * Rigid Meehanite castings with extra ribbing 8 Induction hardened and ground ways * Gearbox with alloy steel gears that are hardened and ground * Extra large precision ground ballscrews * 50-2,500 RPM range; electronic handwheels * Auto Lube system with metered Check valves * Optional Automatic 4 position electric Turret available
