Full Product Description

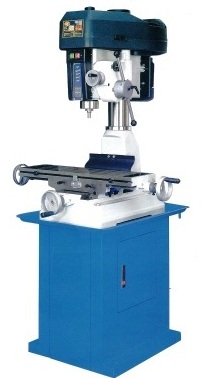

Model: RF-31 (NEW)
Drill Capacity: 1-1/4"
Face Mill Capacity: 3"
End Mill Capacity: 3/4"
Swing: 15-7/8"
Max. Distance Spindle Nose to Table: 18"
Spindle Taper: R8
Spindle STroke: 5"
Diameter of Spindle Sleeve: 3"
Head Swivel: 360 Degrees
Diameter of Column: 4-1/2"
Overall Height (w/o Stand): 43-1/2"
Machine Stand Height: 30"
Length: 42-1/2"
Width: 39-3/4"
Motor: 2 HP, Single Phase
Spindle Speed: 60 HZ, 150-3000 RPM
Approx. Weight: 660 lbs.
EQUIPPED WITH:
* Vise
* Drill Chuck & Arbor
* Cutting Tool / 3" Face Mill
* Warranty
