Full Product Description

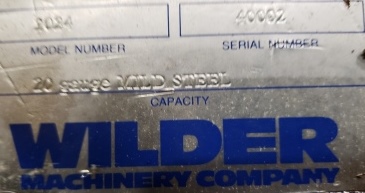

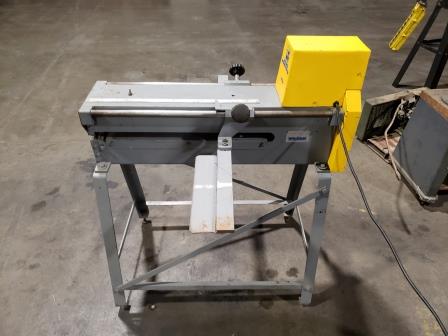

SPECS FROM WILDER - Model: 2024
Cutting Capacity: 20 ga.
Max. Slitting Width: 24.25"
Min. Slitting Width: 1.25"
Feed Direction: Right to Left
Slitting SPeed: 90 Ft. Per Min.
Horsepower: 1/3 HP
Voltage: 115 Volts
Phase: 1 PH.
Cycle: 60 HZ.
Full Load AMPS: 6.4 AMPS
Shaft Diameter: 1.25"
Blades (STD): 2 PC. (4" X .500" X .750"
Side Wall Thickness: .375" Steel Plate
Apprx Weight: 280 lbs.
CAPACITY:
Mild Steel: 20 ga. (.0359")
Sheetmetal: 20 ga. (.0396")
Stainless: 22 ga. (.0300")
Aluminum: .0620"
Copper: .0620"
Brass: .0620"
IMPORTANT CONDITIONS OF THIS QUOTATION:
All relevant facts about the above machinery are believed to
be accurate, but none are guaranteed. It is the sole
responsibility of the buyer to verify all aspects of the
machine tool, descriptions, specifications, condition, and
suitability of the intended usage. All machines are quoted
subject to prior sale, availability, and buyer verification
of specifications. Typographical and clerical errors are
subject to correction.
Thank you for giving us the opportunity to quote your
machinery needs.
