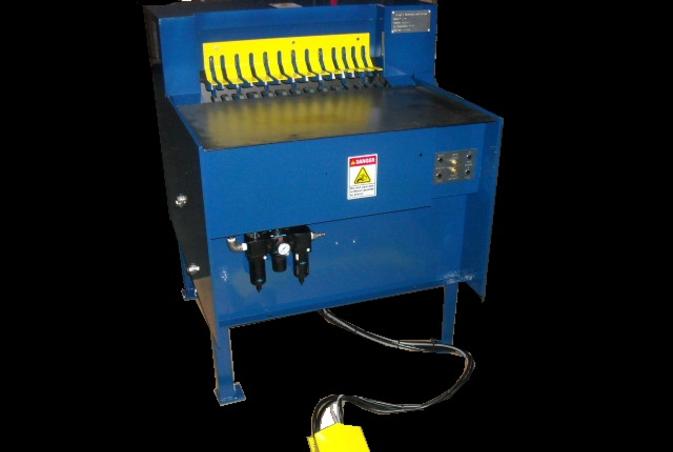

CLEATFOLDER, PNEUMATIC POWER, 18 GAUGE, 24" CAPACITY, MODEL#JL-24 **NEW**
Reference Number: 9280
Condition: New
"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it." Henry Ford
Full Product Description
Model: JL-24 Pneumatic Cleatfolders
Bending Length: 3 to 24"
Bend Capacity: 18 Gauge Mild Steel
Table Height: 36"
Table Depth: 21-1/2"
Back gauge Depth: 7/16 or 1/2" Fixed (specific w/order)
Bend Angle Options: 180 degree
Air Requirements: 80-100 PSI, 4-5 Sec/Cycle
Air Consumption: less than 0.5 Ct ft/cycle at 100psi
Weight: 800 lbs.
Overall Dimensions: 36"W x 40"W x 46"H
BASE MACHINE IS SETUP FOR DRIVE CLEATS
UPGRADED MODELS:
JL-24B: with Manual-Adjustable backgauge
and adds (1) additional alternate bend angle
Add $1,000 to base machine cost
JL-24C: with 2-Position Power Backgauge
and adds (2) additional alternate bend angles
Add $2,000 to base machine cost
JL-24D: with 3-Position Power Backgauge
and adds (2) additional alternate bend angles
Add $3,000 to base machine cost
(NOTE: Video shown is of JL-36D model that consists of
base model machine, does 3-bend angles & 3-position
powered backgauge)
MADE IN THE USA!
