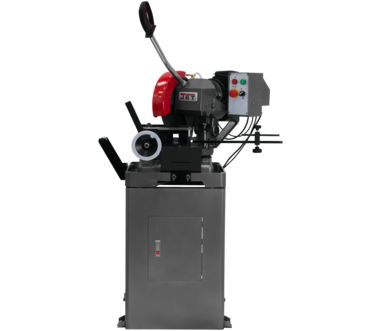

12", JET MANUAL COLD SAW, 1 PHASE, STK#414229, MODEL#CS-315, NEW

Full Product Description

CS-315

Style (Type)Ferrous
Blade Speeds (RPM)54
Tubing Round at 90 Degrees (In.)3-1/2
Tubing Round at 45 Degrees (In.)3-1/2
Tubing Square at 90 Degrees (In.)3-1/5 x 3-1/5
Tubing Square at 45 Degrees (In.)2-3/5 x 2-3/5
Tubing Rectangle at 90 Degrees (In.)4 x 3-1/5
Tubing Rectangle at 45 Degrees (In.)2-1/5 x 2-3/5
Solid Round at 90 Degrees (In.)3-1/2
Solid Round at 45 Degrees (In.)3-1/2
Solid Square at 90 Degrees (In.)3-1/5 x 3-1/5
Solid Square at 45 Degrees (In.)2-3/5 x 2-3/5
Solid Rectangle at 90 Degrees (In.)4 x 3-1/5
Solid Rectangle at 45 Degrees (In.)2-1/5 x 2-3/5
Blade Size (Mm.)315 x 32 x 2
Maximum Vise Opening (In.)4-5/7
Motor (HP)2 HP, 230V, 1 Ph
Overall Dimensions (L x W xH) (In.)40 x 39 x 72
Weight (Lbs.)420


    315mm (12") Ferrous Cold Saw for steel, stainless and
tough to cut alloys.
    Spring loaded whole hand trigger starts or stops the
sawing process for easy smooth cutting and increased user
safety
    Two-piece cast iron blade guard system permits quick and
easy blade changes without removing the guards
    Quick clamping cam-action vise with adjustable gib and
material support bar for burr-free cutting operations
    Hardened and ground direct drive worm shaft and bronze
worm wheel transmits maximum torque to the saw blade
    Blade drive reduction gearbox operates in an oil bath
for increaded durability
    Heavy-Duty cast iron frame base with easy access storage
provides a stable cuting platform
    1-1/3 Gallon coolant reservoir and pump with flow
control system extends blade life
    Quick tension and release mitering capabilities with
stops at 45 right, 45 left
    Fully adjustable material depth stop for sawing
repeatability and increased production
