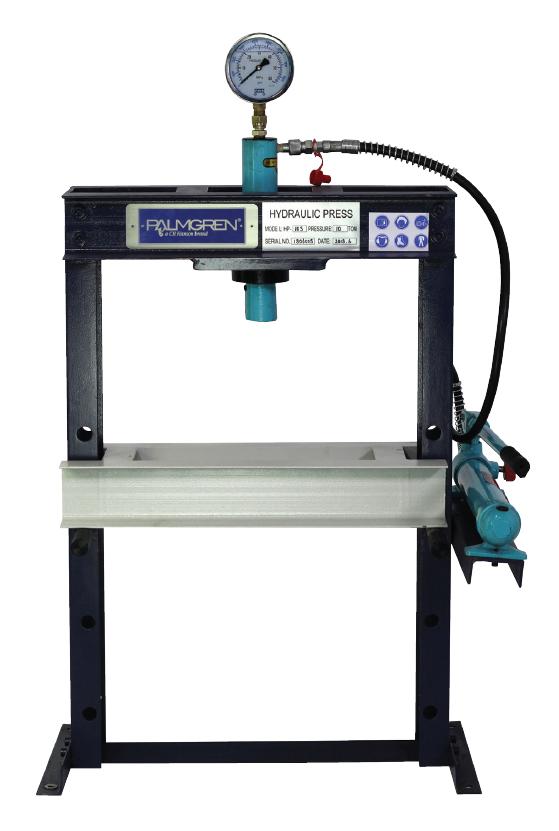

25 Ton, PALMGREN H-Frame Press, MODEL#9661613, NEW

Specific Info On This Equipment

Reference Number: 10342

Condition: New

"If you need a machine and don't buy it, then you will ultimately find you have paid for it but don't have it." Henry Ford

Full Product Description

MODEL#9661613

    Maximum Pressure 25 TON
    Ram Size 6.3 In
    Ram Diameter 2.28 In
    Throat Capacity 19.7 x 14.17 In
    Largest Arbor Extension 6.3 In
    Maximum Work Diameter 19 x 19 In
    Minimum Work Diameter 19 x 0.04 In
    Leverage Radio 1000/1 Lbs
    Table Weight 88 Lbs
    Dimensions 23"x17"x76" L x W x H
    Weight 260 kgs

-Pressure gauge for direct pressure readings
-Easily adjustable table for quick height changes between
   applications
-Holes in side frames allow for insertion of long material
-Hand operation for economic performance
-Efficient hand pump is conveniently located for reduced
   operator fatigue
-Fully-welded heavy steel plate frame for maximum rigidity
-Factory preset relief valve to prevent exceeding maximum
   pressure capacity
-By-pass hole prevents excessive ram extension
-Rapid ram return starts as soon as release valve is opened
   and may be stopped at any point by closing the valve
-Single acting cylinder design for improved operation
